3D Laser Scanning Subaru FA20 Engine Block

Engine block data is an invaluable resource for engineers, automotive builders, motorsport teams, custom fabricators, and manufacturers. This highly accurate data can be utilized for basic tasks such as sizing, test-fitting, and verifying spacing, as well as for more complex projects like designing new performance parts and digital engine building for systematic engineering.

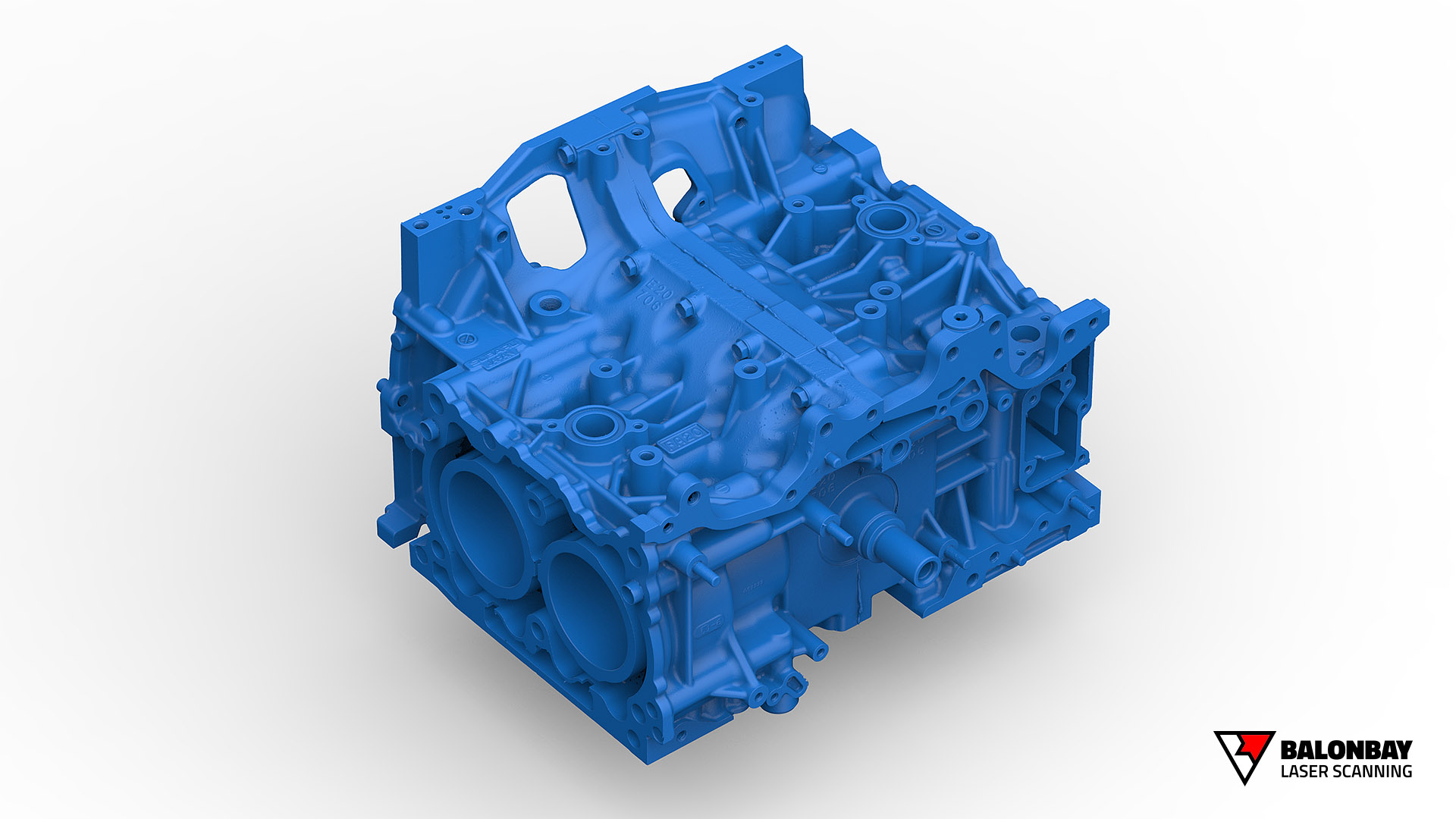

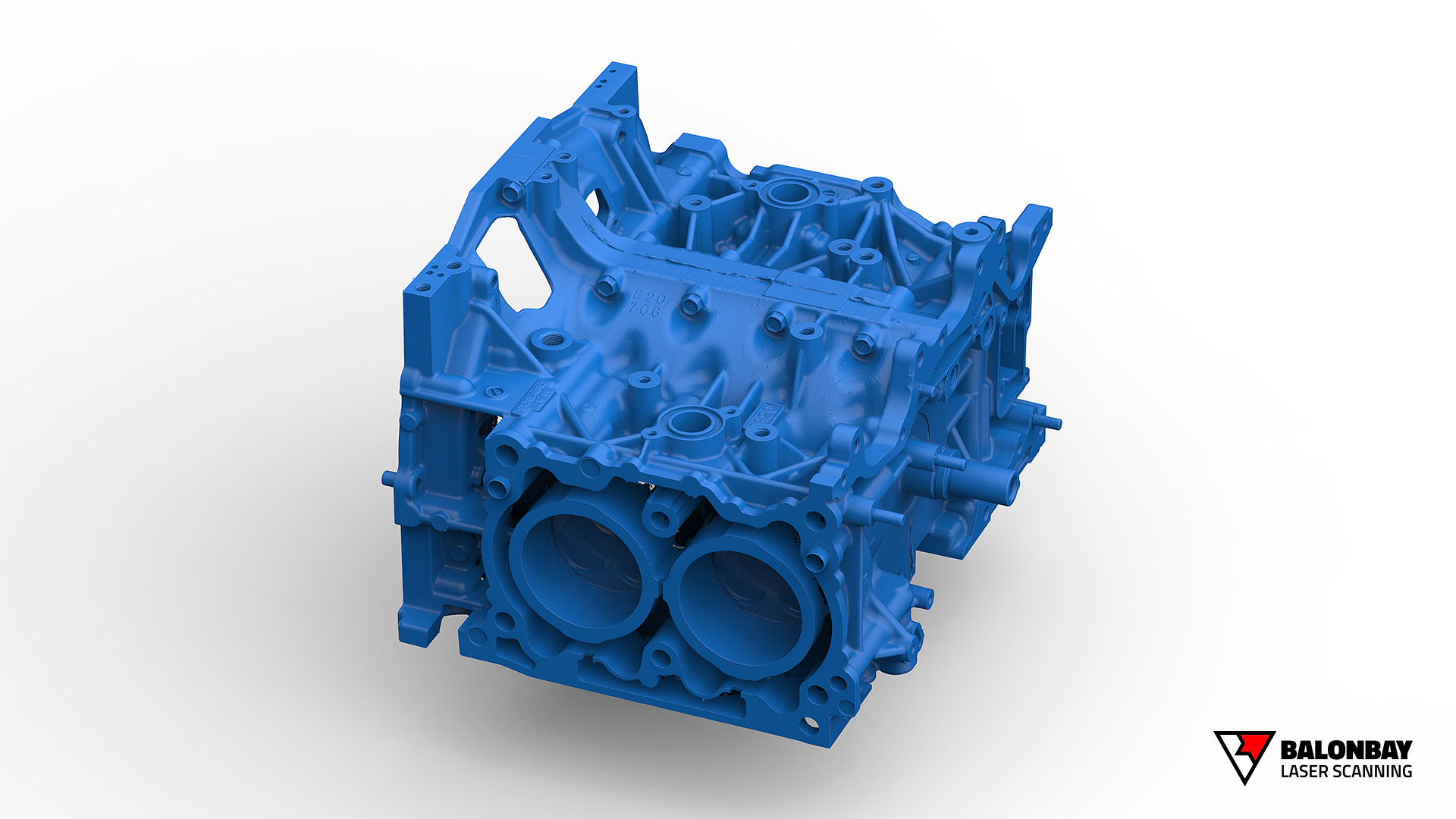

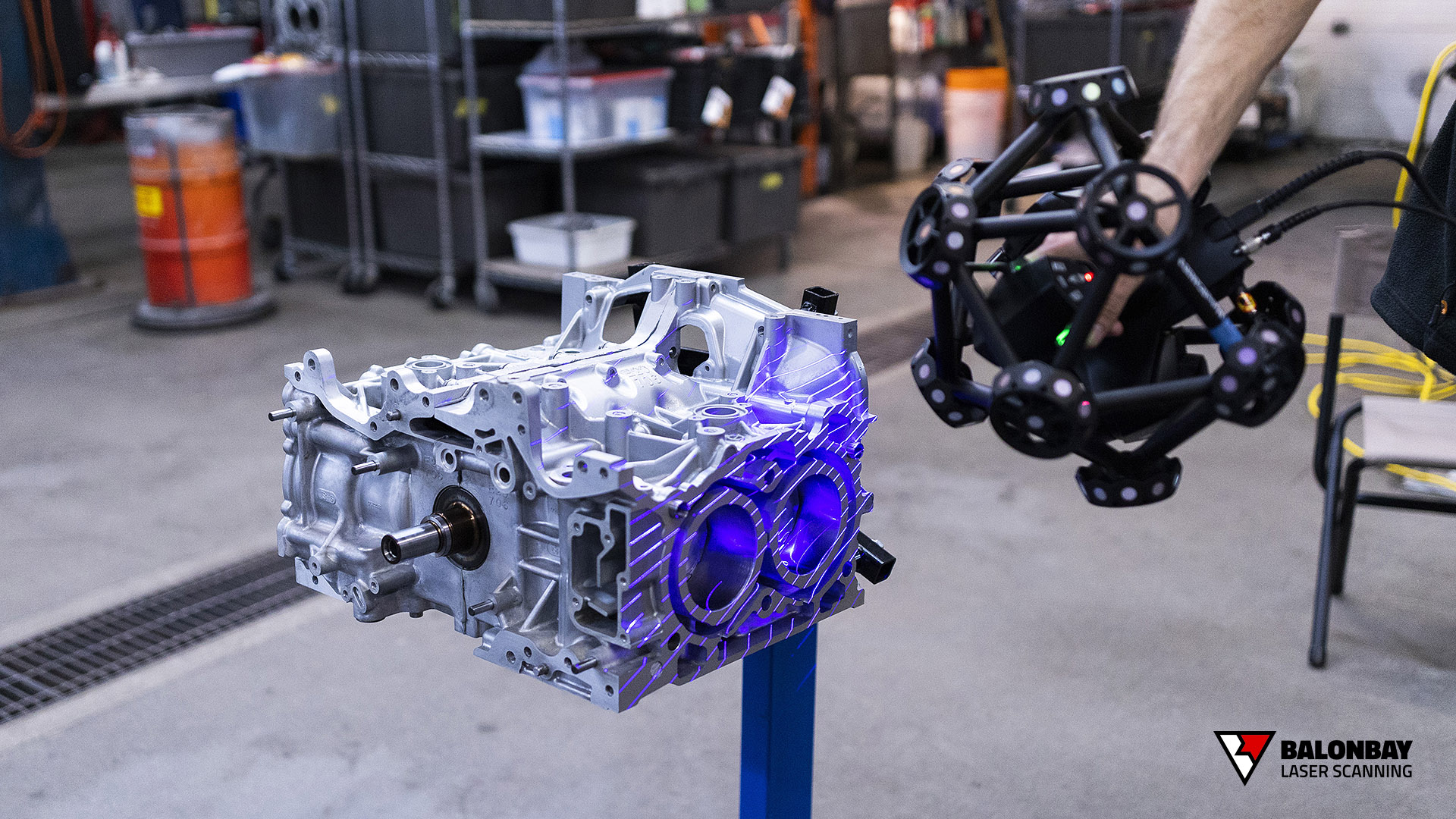

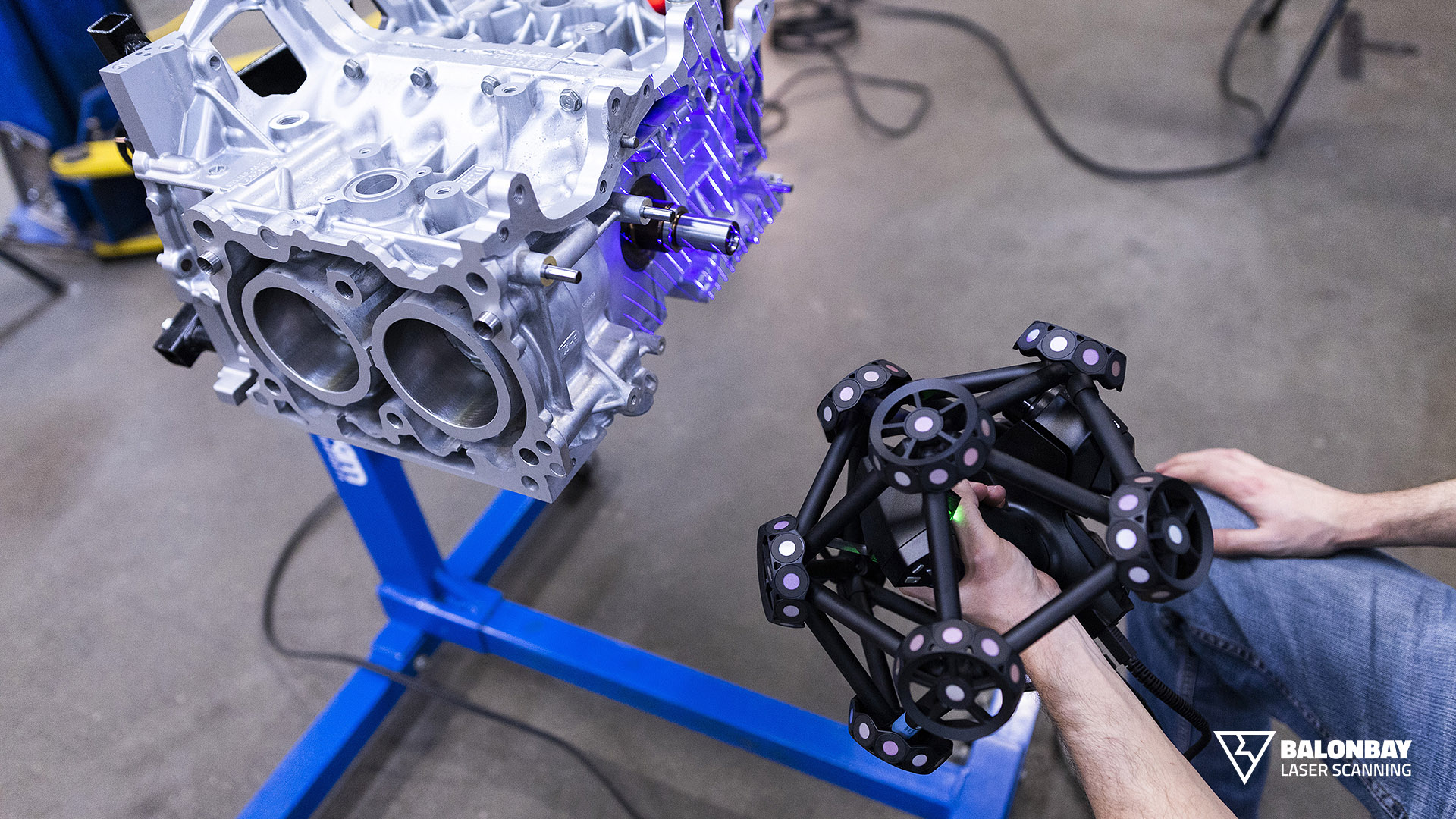

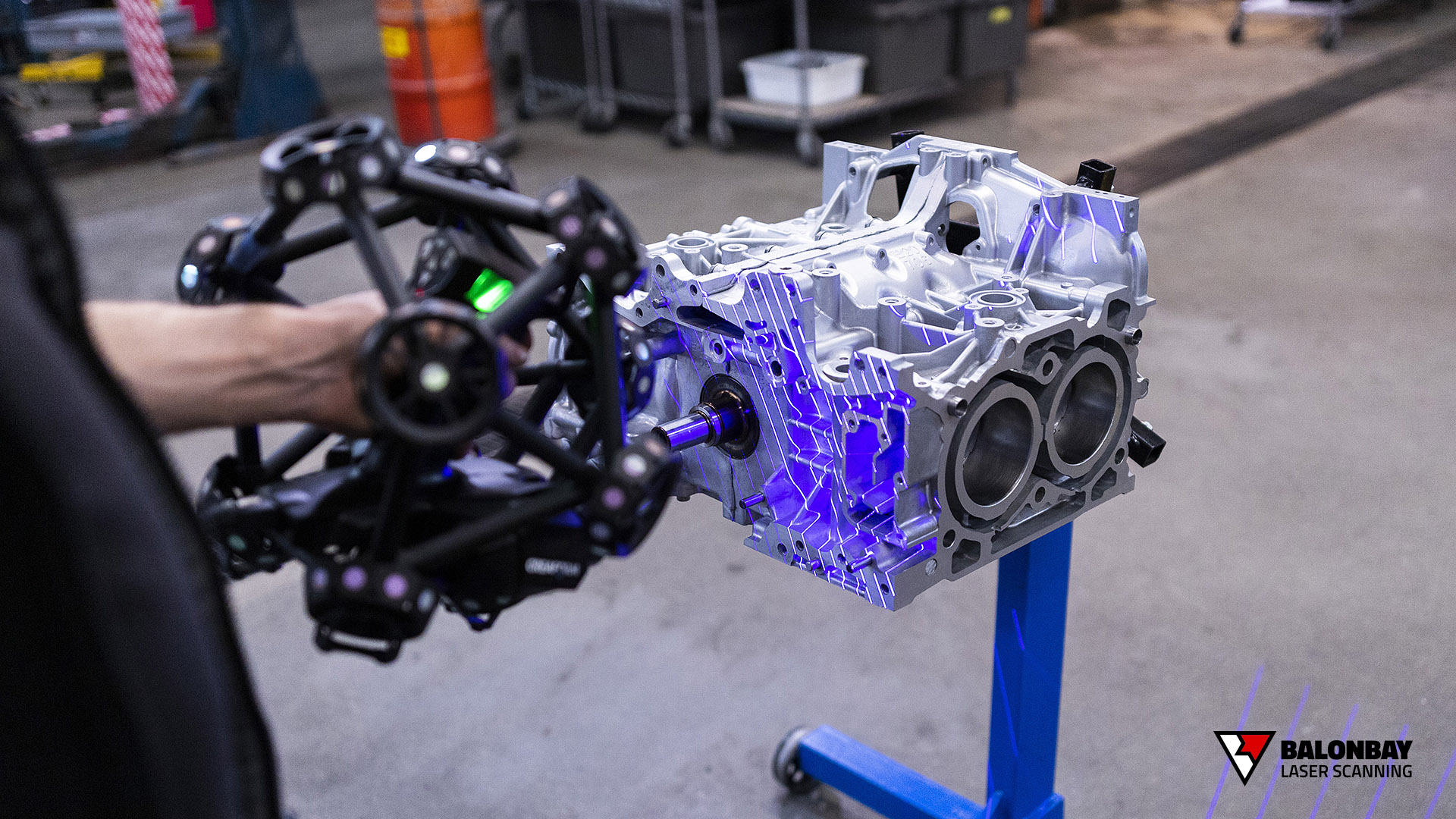

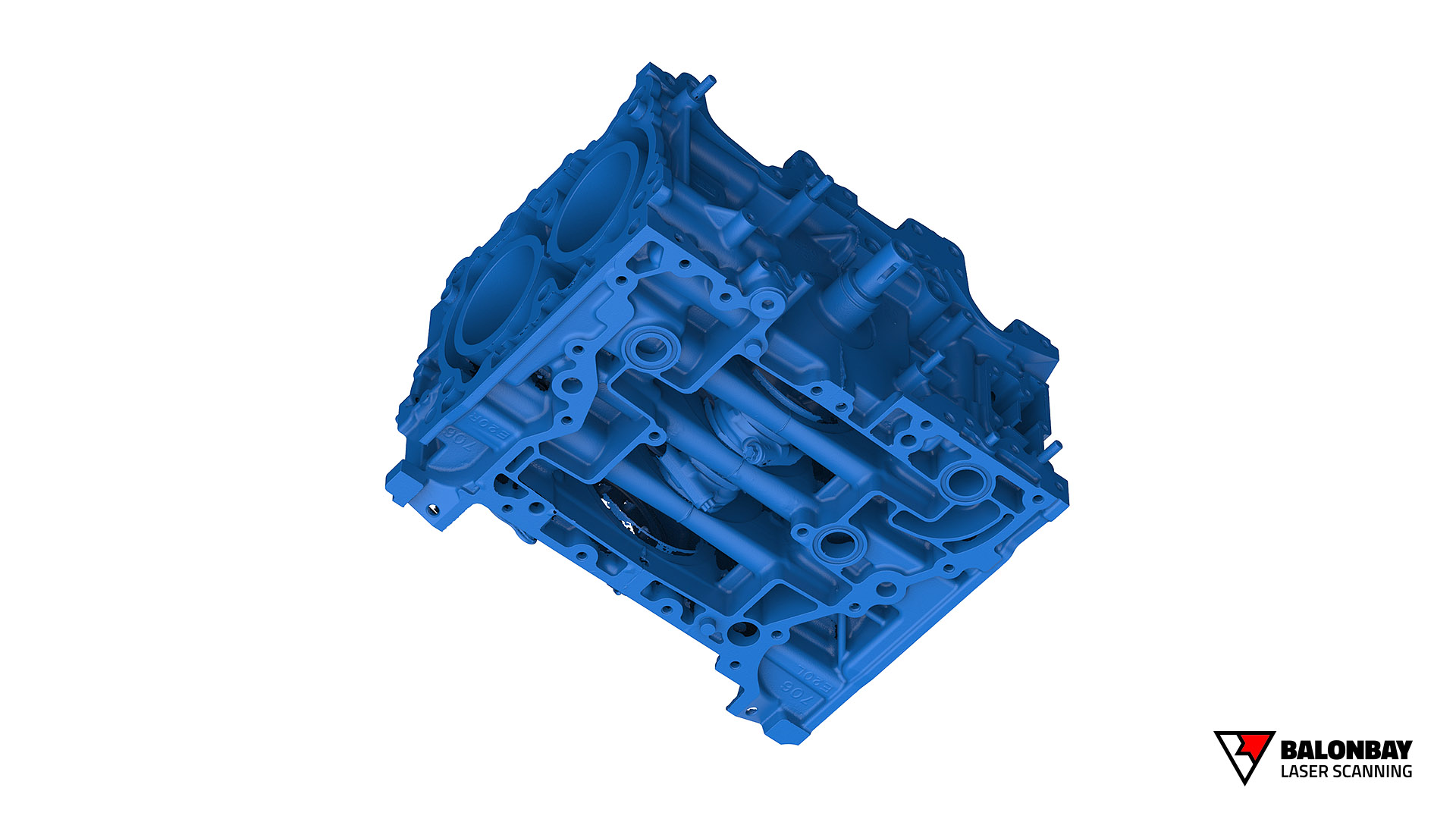

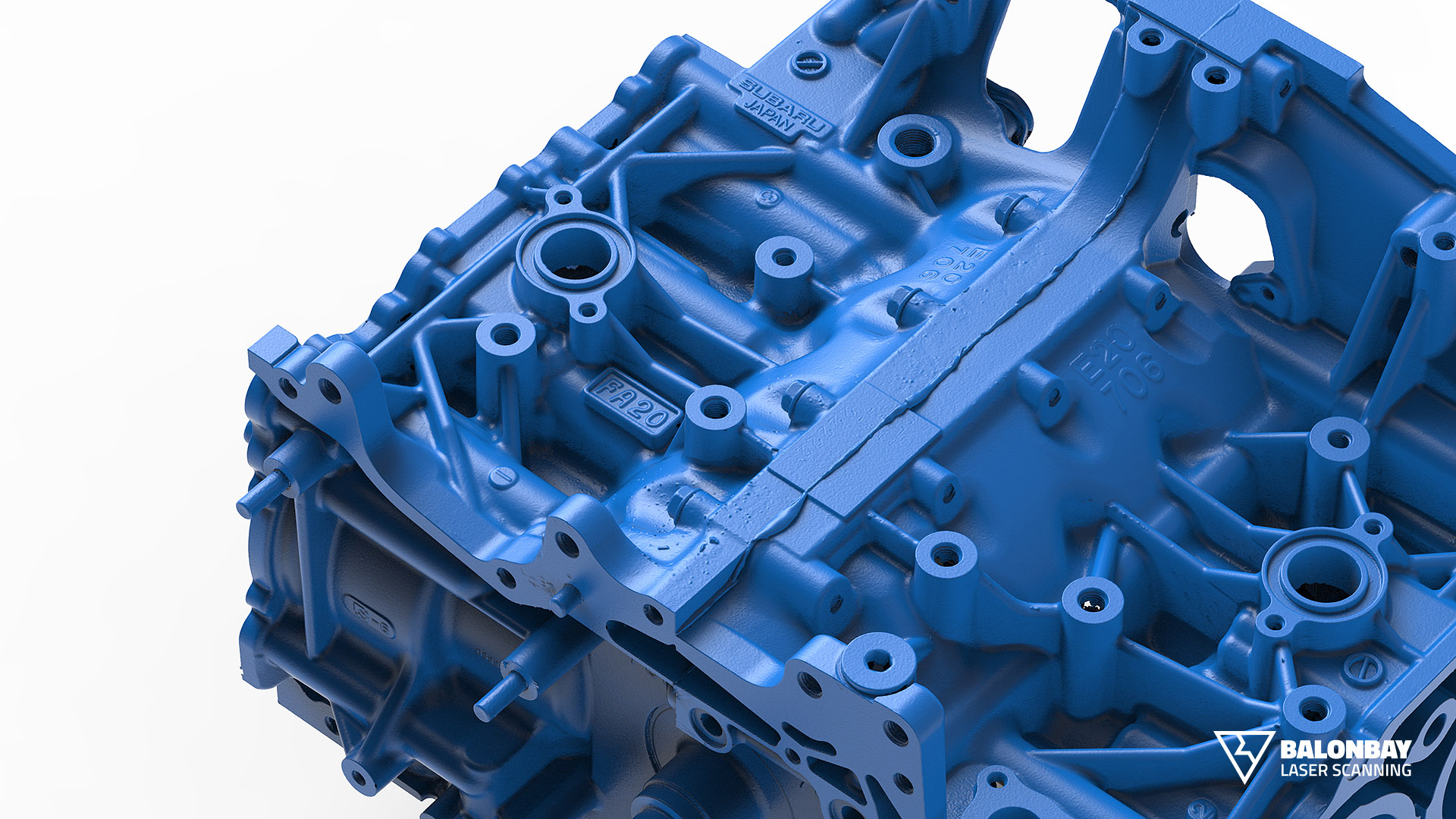

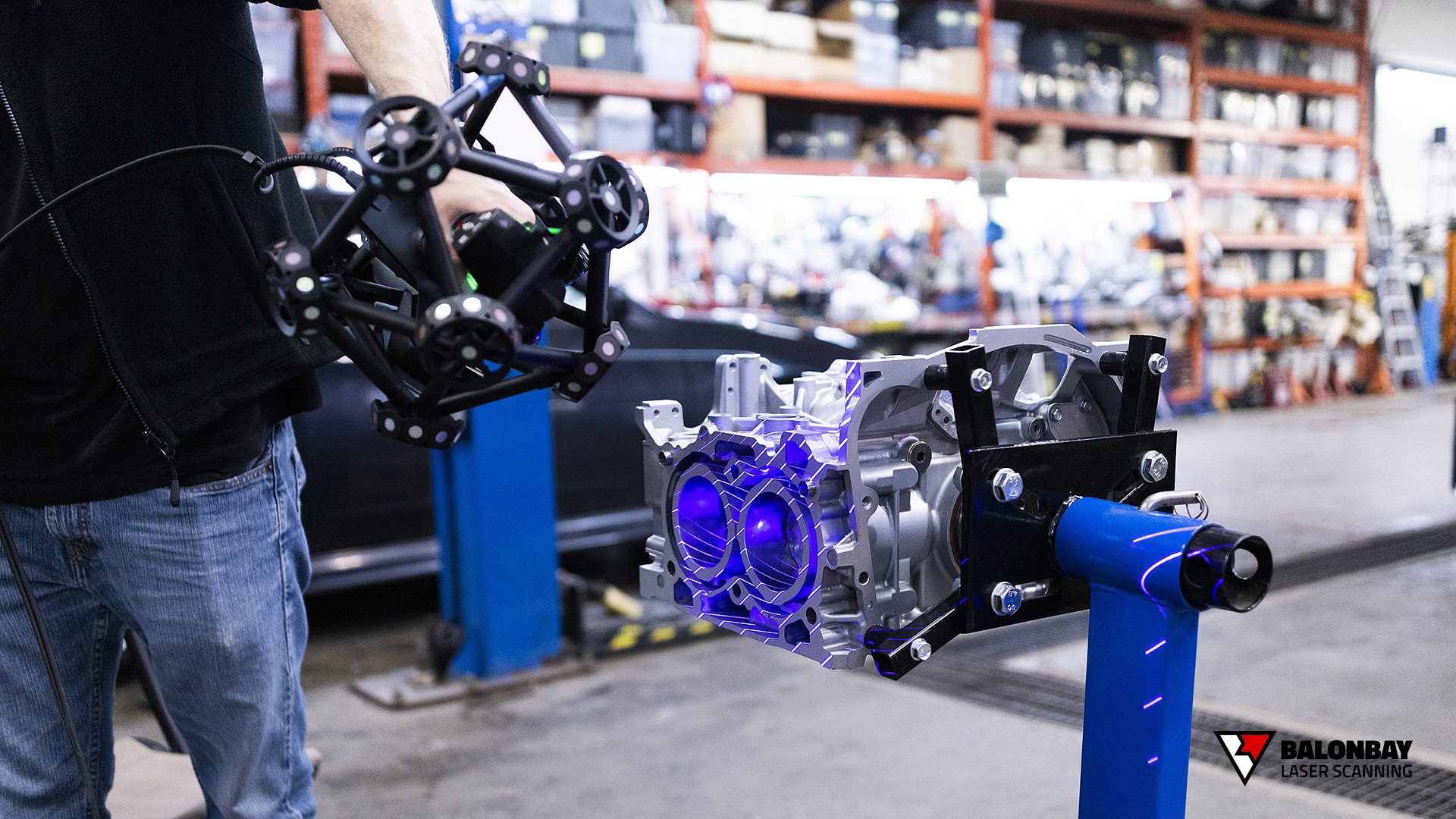

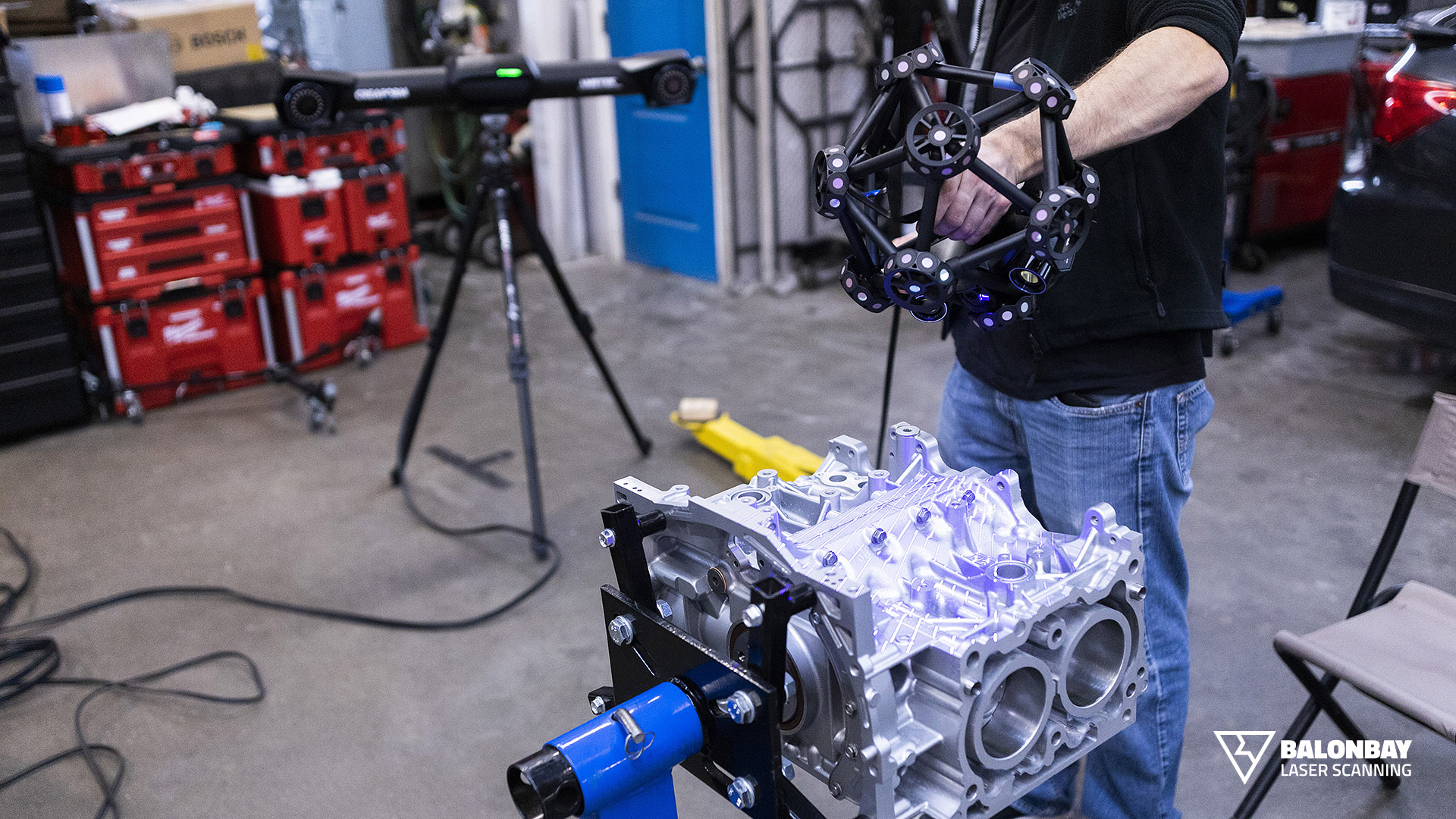

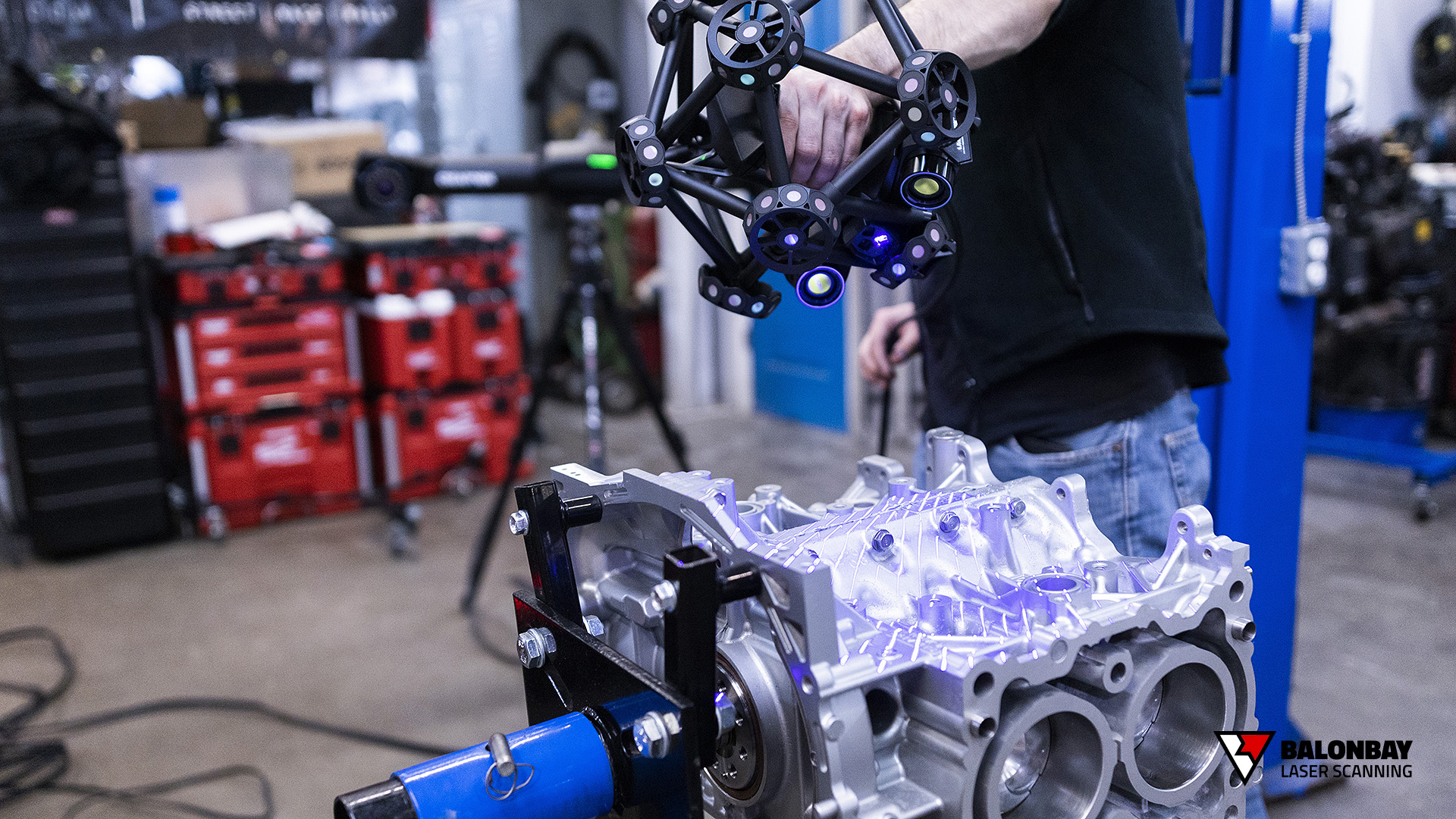

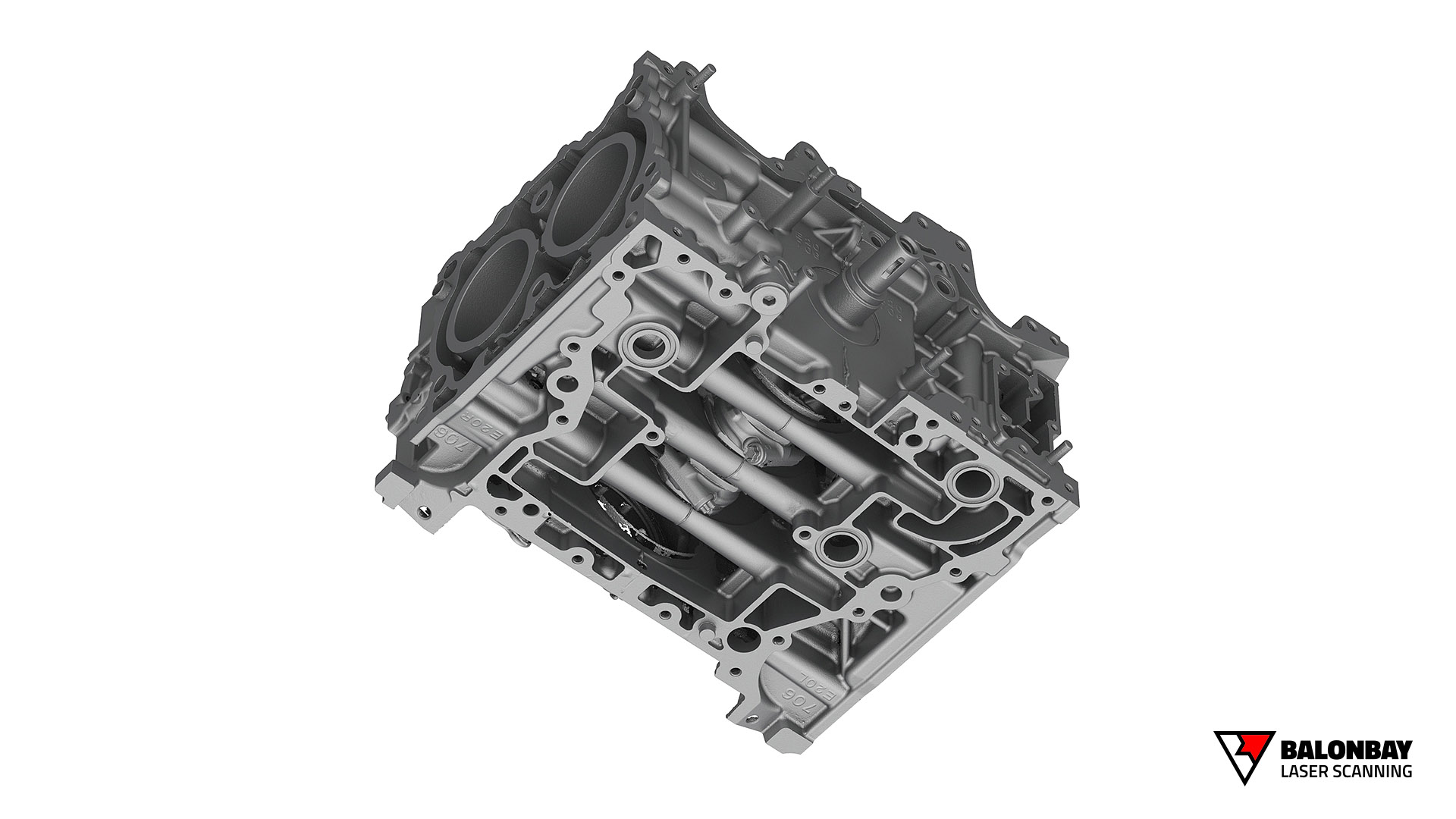

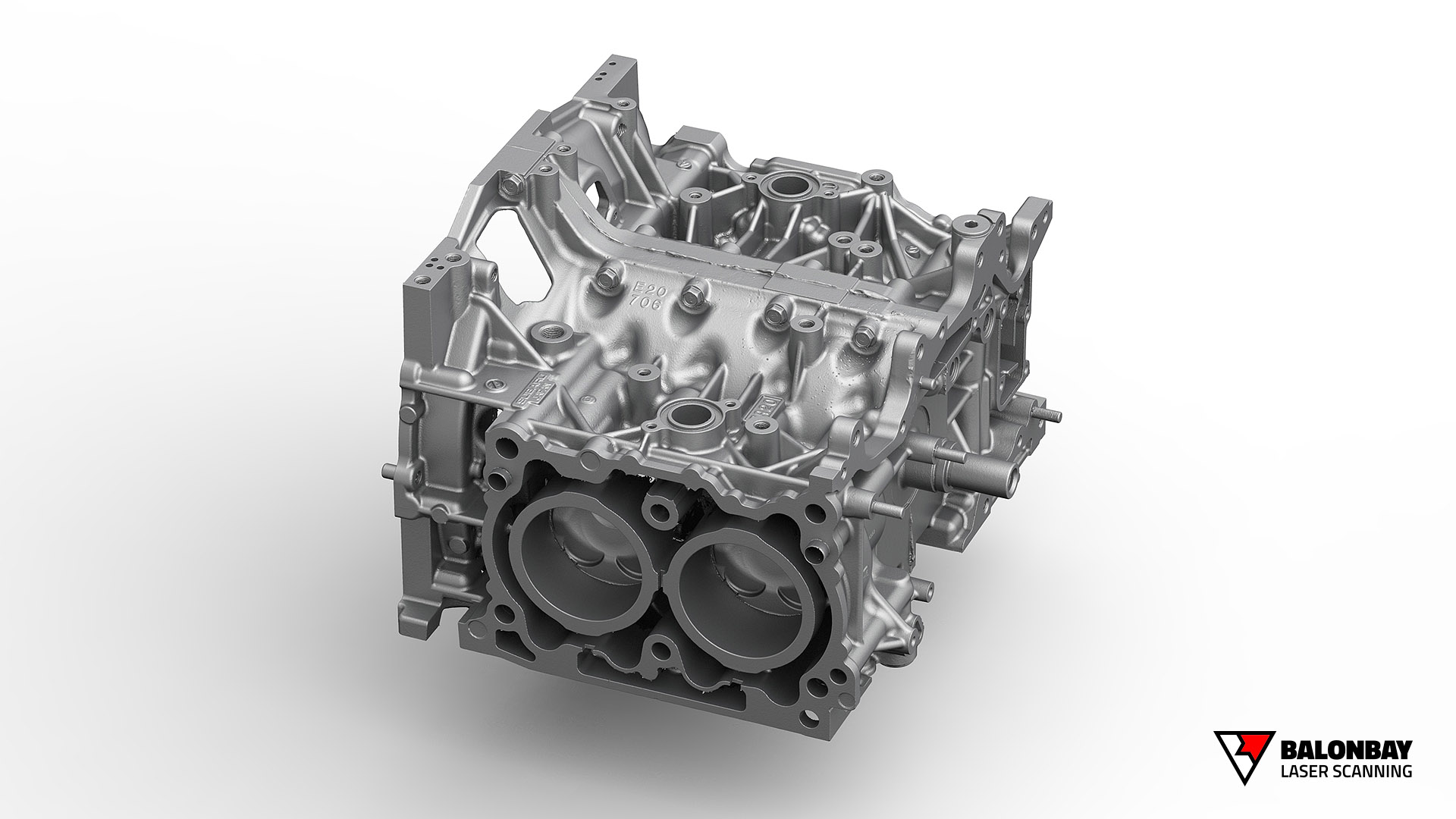

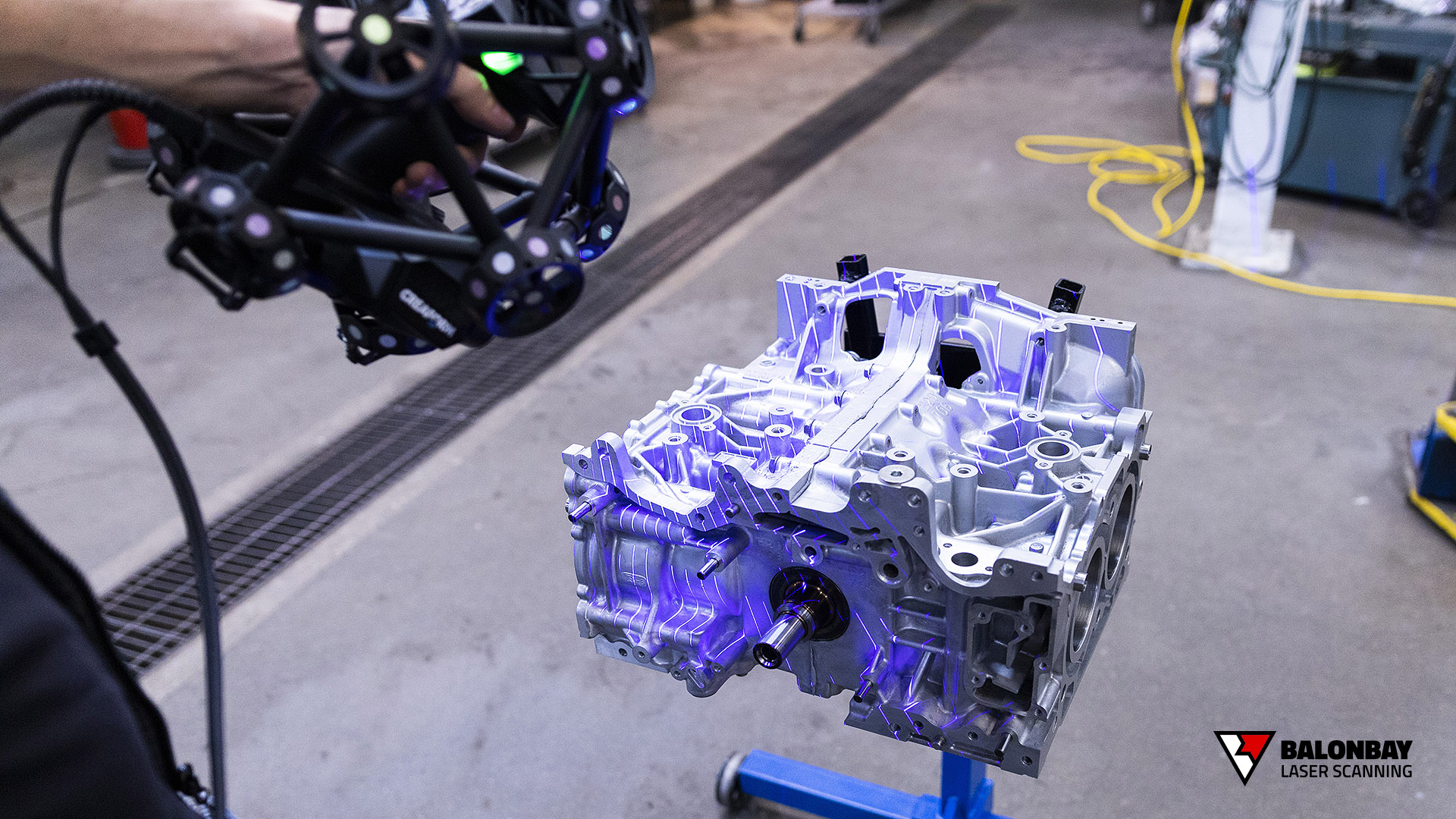

The Subaru FA20 engine block was scanned on an engine stand using our industrial-grade 3D laser scanner, which has a certified accuracy of 25 microns or better and is ISO 17025 accredited. Our quality of work and attention to detail are evident in the rendered images below. The scan was conducted at ultra-high resolution, allowing us to capture intricate details, including casting marks and bolt threads.

This scan data is available for purchase. Please visit our shop for more information or contact us directly.
