Scion FR-S Dashboard Interior Laser Scan

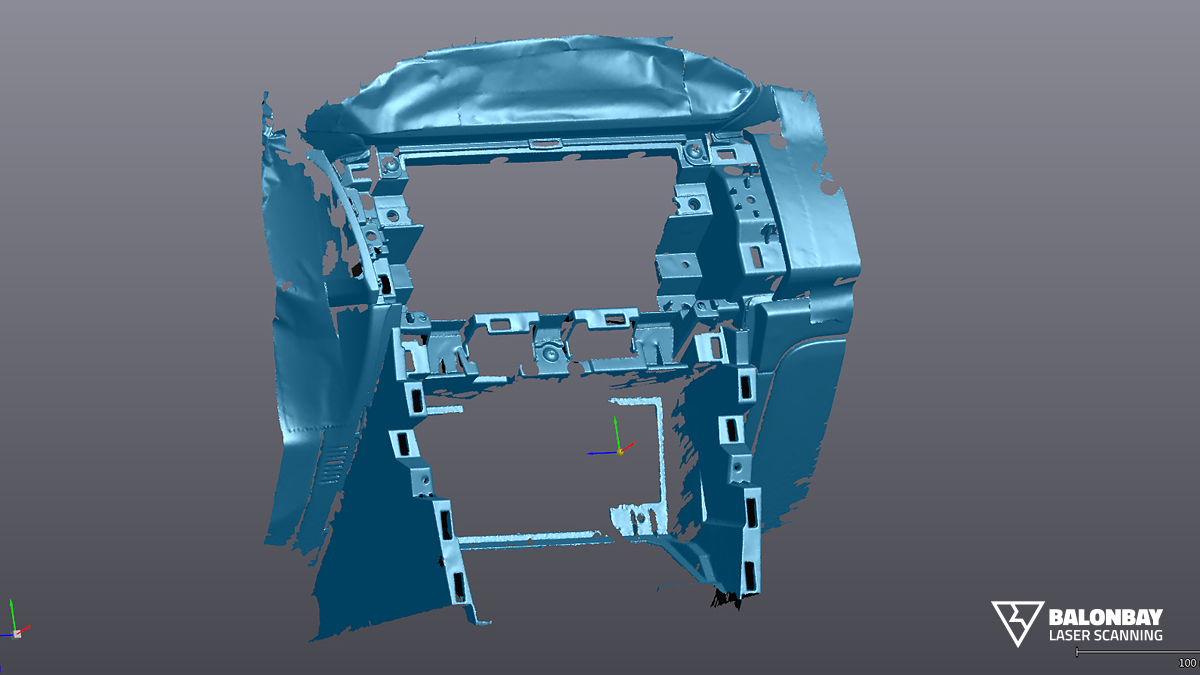

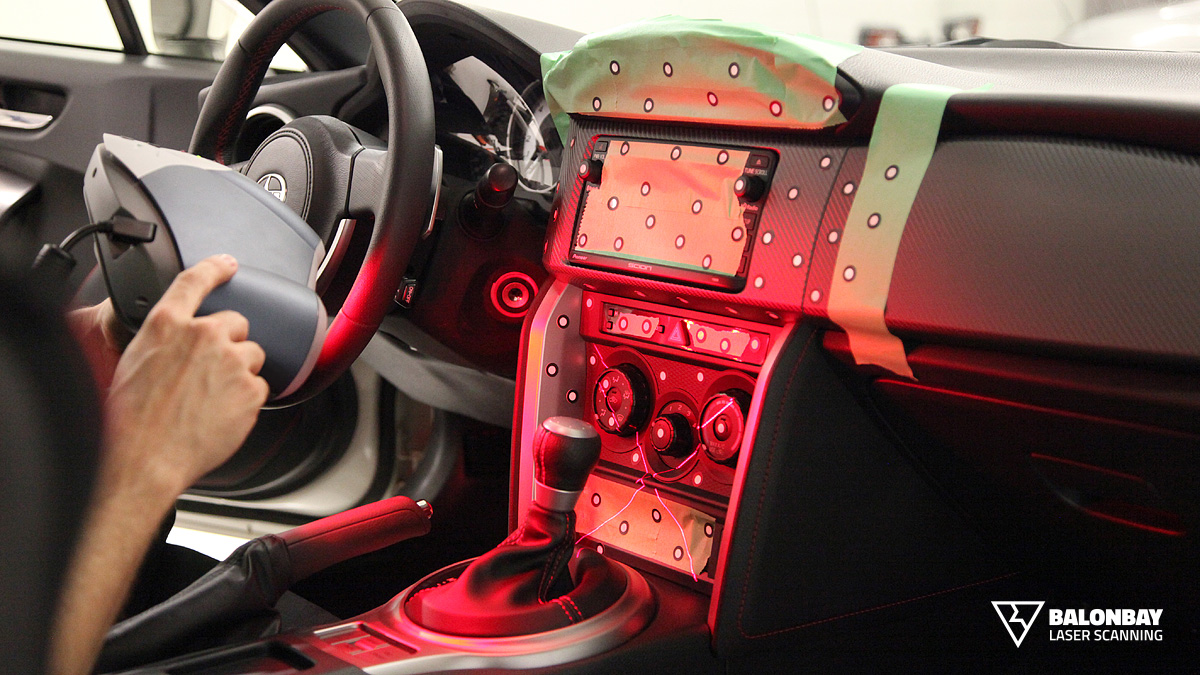

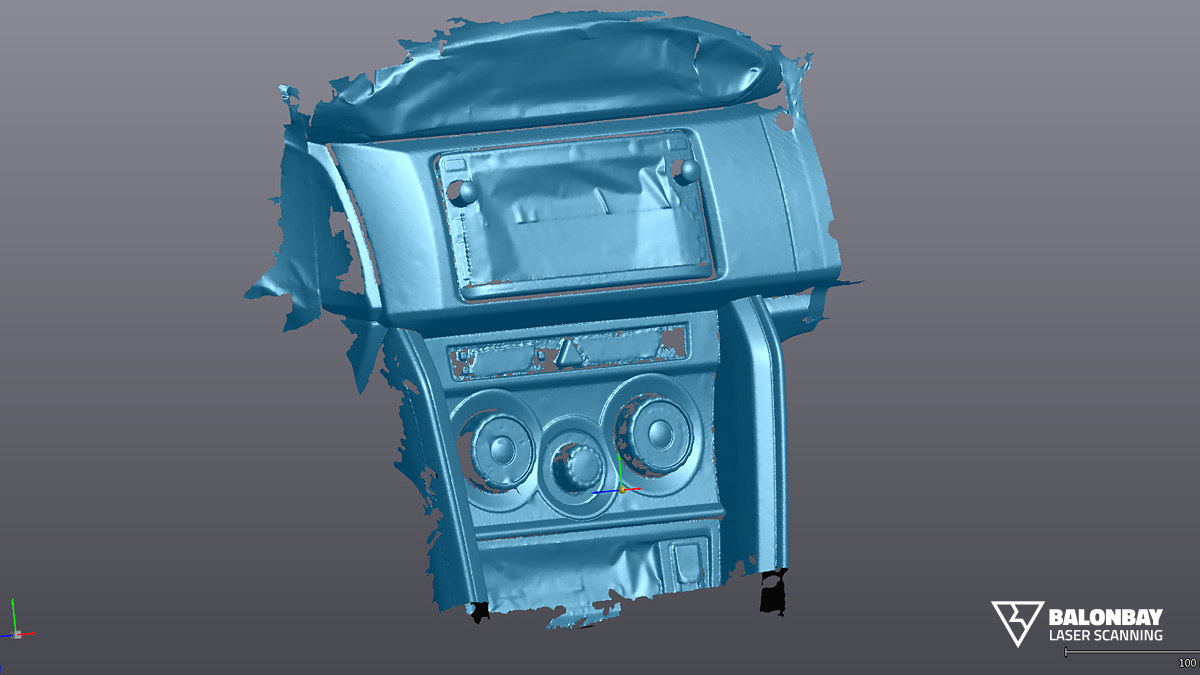

In order to design new interior accessory products to fit perfectly into the Scion FR-S, highly accurate measurements of the surfaces, geometry, and mechanical asembly (snap fit clips, mounting points) are required. For this project, we laser scanned the central region of the Scion FR-S dashboard, capturing all the outer surfaces, and we performed further scans with the outer plastics removed, capturing all the intricate mounting points.
